UP28 Electronic Vacuum Booster Pump for New Energy Vehicles

FOB Reference Price:

100 – 499 pieces	$40
500 – 999 pieces	$38
>= 1000 pieces	$36

Samples: $60 per piece
If you would like to receive more discounts, you can contact us to discuss

Send email to us

Product Detail

Product Tags

Price Shipping On Time Payment

Applicable models:
1. For turbocharged engine models (as an auxiliary vacuum source)
2. Used for pure electric small low-speed electric vehicles (as an independent vacuum source)
Basic parameters:
1. Voltage: DC 9-16V (suitable for 12V on-board power supply)
2. Temperature resistance: -40 ℃~+120 ℃
3. Weight: 0.93kg
4. Volume: 139.5mm * 125mm * 105mm
5. Power: 70W
6. Pumping speed: Volume 3.2L,
pumped from atmospheric pressure to -50kpa ≤ 5s
Extract to -70kpa ≤ 11s
7. Noise: 300 ± 5mm away from the product, testing ≤ 62dB
8. Service life: 600000 times/800h

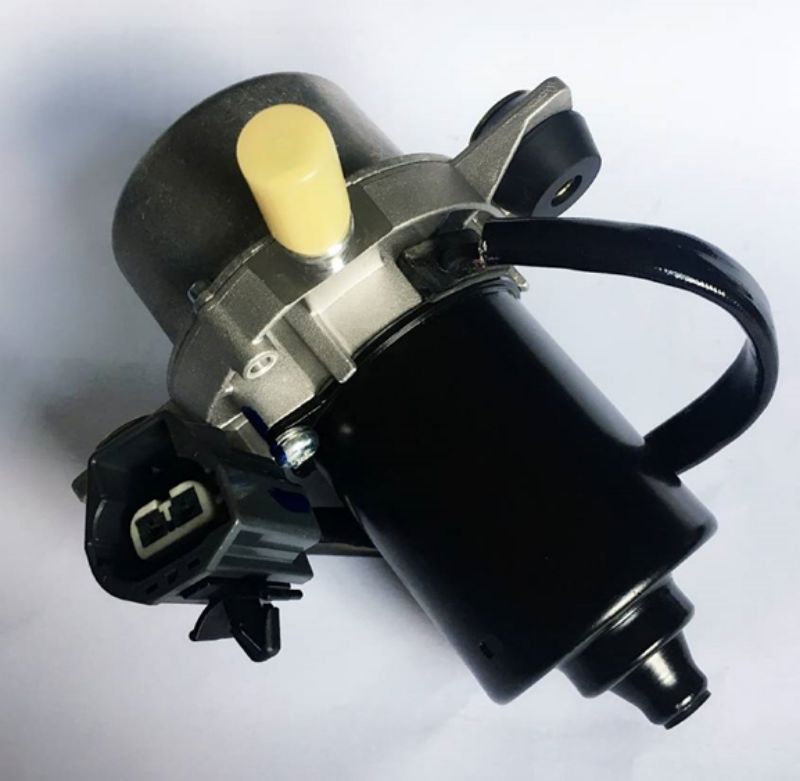

up28 (1)

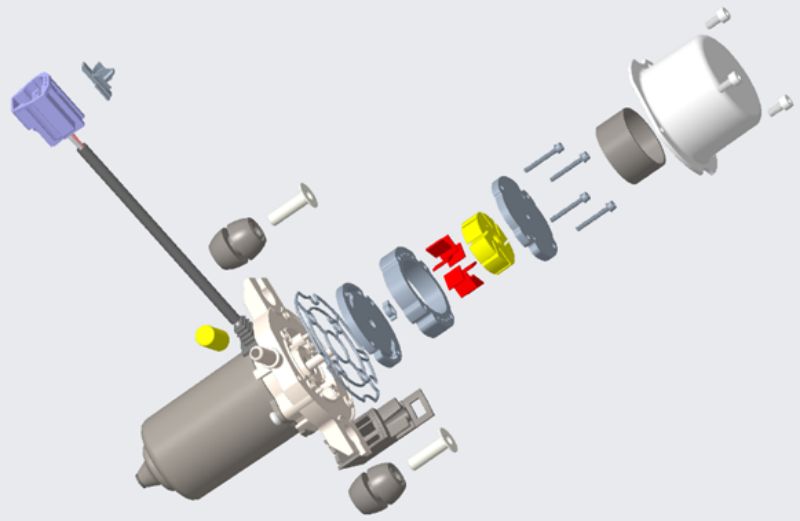

up28 (2)

up28 (3)

Lead time:

Quantity (pieces)	1-500	501-2000	>2000
Lead time (days)	15	30	To be negotiated

Accepted Delivery Terms:
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DE；
Accepted Payment Currency:
USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type:
T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;

Factory

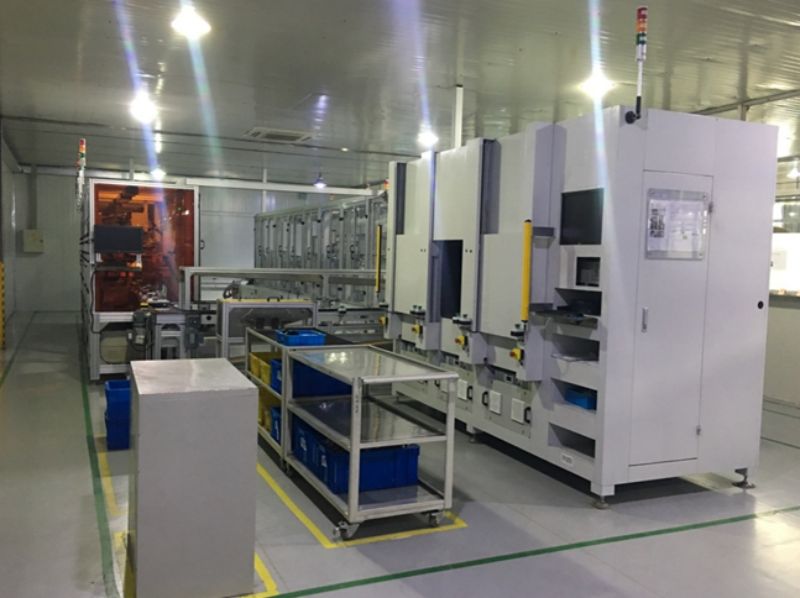

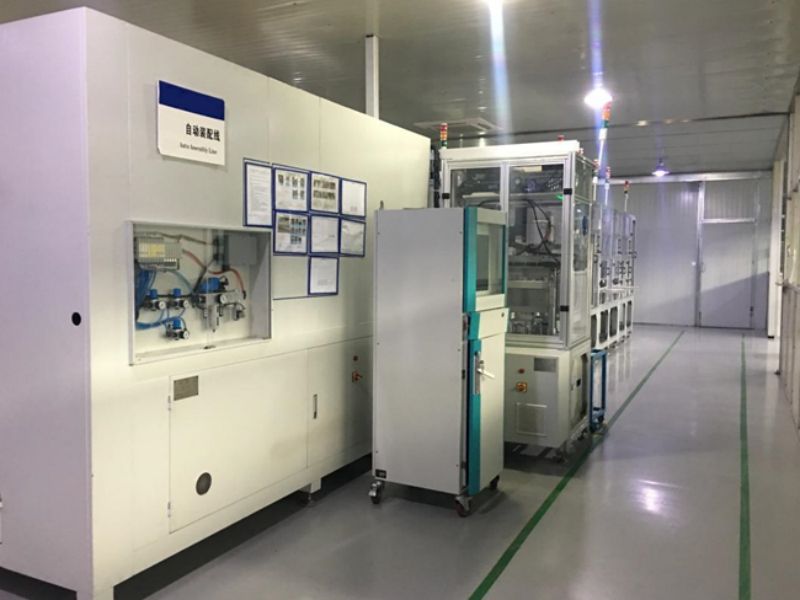

The UP28 auxiliary vacuum pump is produced using a fully automatic assembly and testing line (100% full inspection of suction performance, current, and noise),
The production speed reaches 42 seconds per unit, and the annual full load capacity reaches 500000 units.
The vacuum booster pump is a mechanical device used to provide the auxiliary vacuum force required by the braking system of automobiles or other mechanical equipment. It sucks in air by generating negative pressure, compresses the air and sends it to the braking system, thereby increasing braking force.

up28 (4)
