UP30 Electronic Vacuum Booster Pump for New Energy Vehicles

FOB Reference Price:

100 – 499 pieces	$50
500 – 999 pieces	$48
>= 1000 pieces	$45

Samples: $60 per piece
If you would like to receive more discounts, you can contact us to discuss

Send email to us

Product Detail

Product Tags

Price Shipping On Time Payment

Applicable models:
1. Used for new energy pure electric vehicles (as an independent vacuum source)
2. For hybrid vehicles (as an independent vacuum source)
Basic parameters:
1. Voltage: DC 9-16V (suitable for 12V on-board power supply)
2. Temperature resistance: -40 ℃~+120 ℃
3. Weight: 1.65kg
4. Volume: 178mm * 130mm * 115mm
5. Power: 150W
6. Pumping speed: volume 4L,
Extract from atmospheric pressure to -50kpa ≤ 4s
Extract to -70kpa ≤ 7s
7. Noise: 300 ± 5mm away from the product, testing ≤ 70dB
8. Service life: 900000 times/1200h

up28 (1)

up28 (2)

up28 (3)

Lead time:

Quantity (pieces)	1-500	501-2000	>2000
Lead time (days)	15	30	To be negotiated

Accepted Delivery Terms:
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DE；
Accepted Payment Currency:
USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type:
T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;

Factory

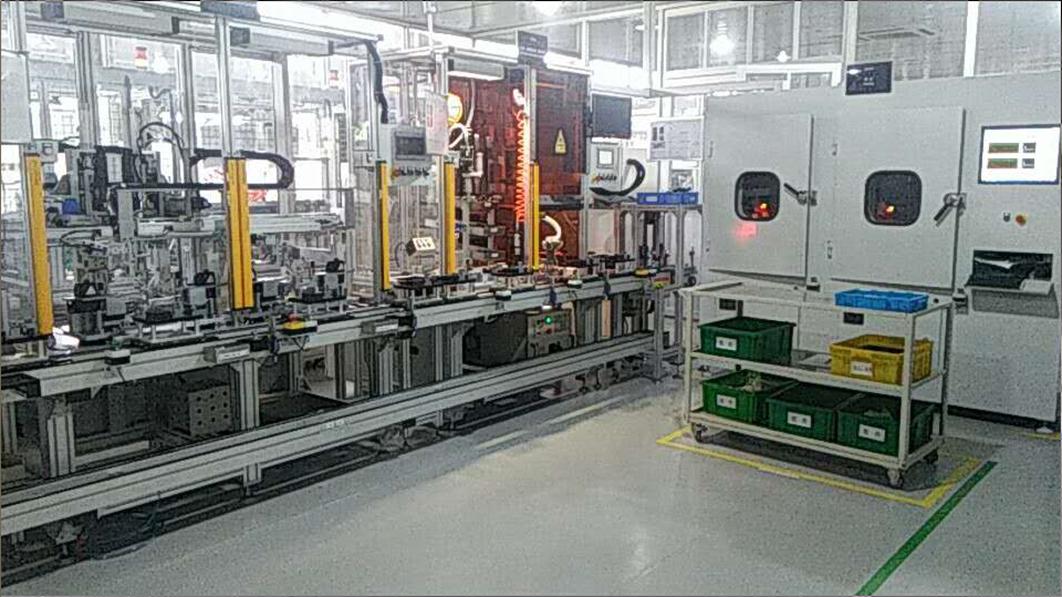

The UP30 electric vacuum pump is produced using a semi-automatic assembly and testing line (100% full inspection of pumping performance, current, and noise), involving key process characteristics assembly steps (such as pressing the transmission sleeve, adjusting the clearance between the stator and rotor, etc.) carried out by automated equipment. The production speed reaches 62 seconds per unit, and the annual full load production capacity reaches 300000 units.
Vacuum booster pumps usually consist of a driving part and a vacuum pump. The driving part is usually driven by the camshaft on the engine, and the vacuum pump is responsible for generating vacuum force.

When the driver depresses the brake pedal, the vacuum booster pump generates vacuum force and transfers the vacuum to the brake booster. The brake booster uses this vacuum force to increase the power of the drive part, thereby reducing the driver's braking force. This makes braking easier and easier to control.

Vacuum booster pumps play an important role in the braking systems of automobiles and other large mechanical equipment. It provides powerful braking power, making it easier for the driver to operate and stop faster.
